Visualizing KORE SUPER SIM Event Streams in Real Time

Hi there, my name is Vitor Ribeiro, and I am a Solutions Architect at KORE Wireless.

In this article, I’ll show you how I built a full real-time geospatial visualization tool for KORE SUPER SIM using the Event Streams, FastAPI, and Leaflet using OpenAI Codex

You can download the code from my GitHub repository here

New to Event Streams? Start with my Getting Started with KORE SUPER SIM Event Streams guide first.

---

⭐ What the App Does

Super SIM Heatmap provides:

• Real-time Super SIM event ingestion
• Persistent storage of CloudEvents payloads
• Dual online/offline heatmap layers
• Timeline slider for replay
• Device event feed with metadata
• Click-to-pan tower visualization

---

🌍 Why Visualize Super SIM Events?

KORE SUPER SIM emits session lifecycle events such as:

• connection.data-session.started
• connection.data-session.updated
• connection.data-session.ended

Visualizing them helps teams understand connectivity patterns and issues across geography and time.

---

🧱 Architecture Overview

FastAPI     → Webhook ingestion
SQLite      → Raw event persistence
SQLModel    → ORM
Leaflet     → Heatmap rendering
Jinja2      → Templates

---

⚡ Webhook Ingestion

The webhook endpoint:

POST /webhooks/supersim

Validates, extracts, and persists raw event payloads.

---

🔥 Dual-Layer Heatmap

• Green = online
• Red = offline

State is inferred by latest event per ICCID.

---

⏱ Timeline Scrubbing

Scrub 00:00–23:59 and reconstruct fleet activity by timestamp.

---

📋 Device Event Sidebar

Shows:

• ICCID
• Tower
• Network
• RAT
• Timestamp

---

🤖 Synthetic Data Seeder

Simulates START → UPDATE → END events across global cities.

Example:

.venv/bin/python scripts/seed_events.py --region naples --devices 50 --count 550

---

🧪 Manual cURL Tests

Includes samples for all session lifecycle events.

---

🖥 Web UI Overview

• Device sidebar
• Heatmap toggles
• Timeline slider
• Stats counters

---

📁 Project Structure

app/
scripts/
templates/
static/
docs/

---

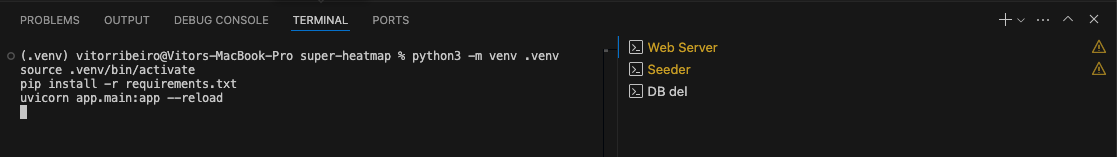

🛠 Quick Start

python3 -m venv .venv
source .venv/bin/activate
pip install -r requirements.txt
uvicorn app.main:app --reload

---

🛠 Seed sample data

50 devices in Naples, ~550 sessions total

.venv/bin/python scripts/seed_events.py --region naples --devices 50 --count 550

30 devices in every region, 5 sessions each

for region in naples toronto saopaulo lisbon shanghai capetown sydney; do
  .venv/bin/python scripts/seed_events.py --region "$region" --devices 30 --sessions-per-device 5
done

---

🛠 Map Examples

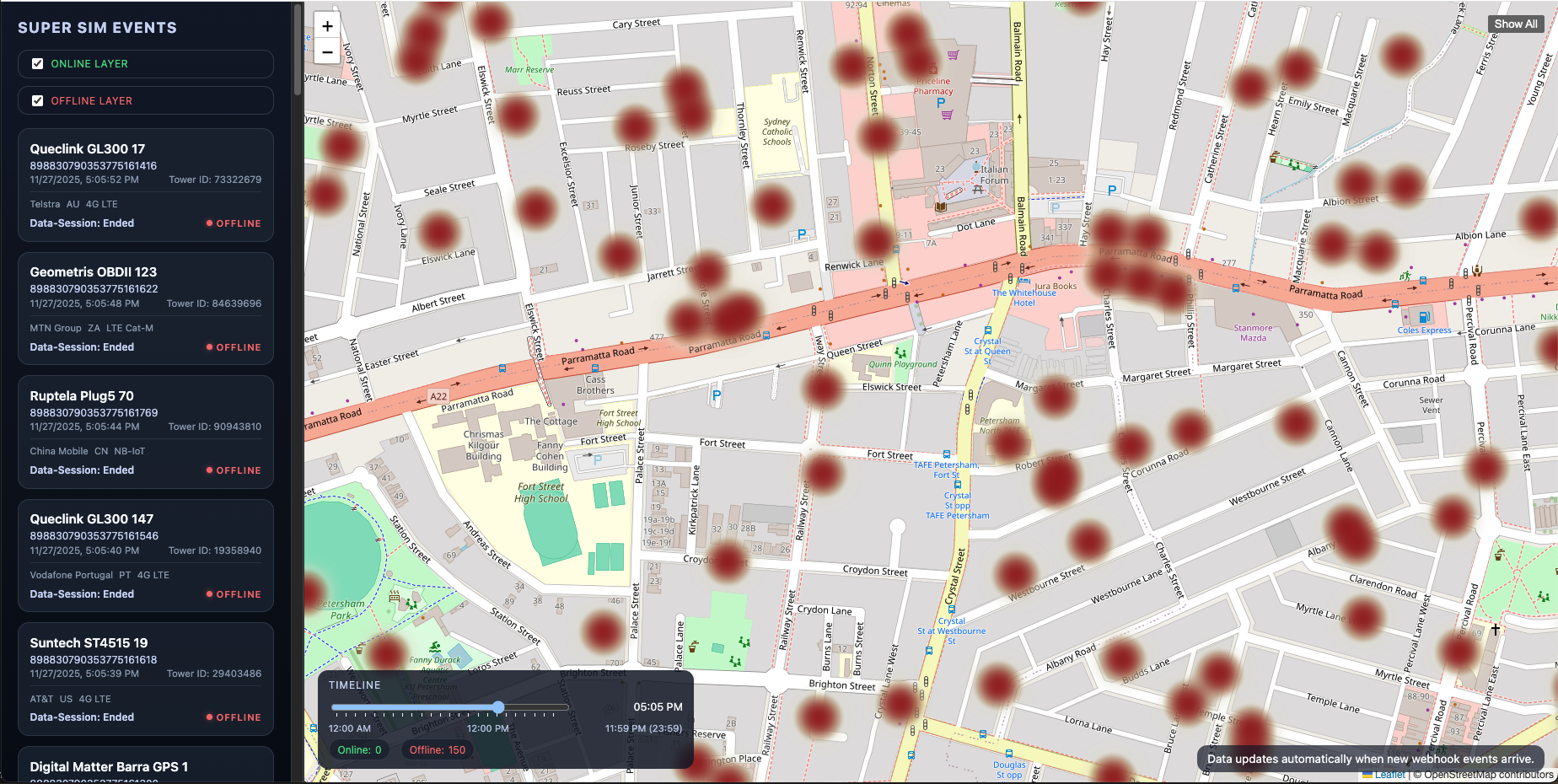

Map after seeding data

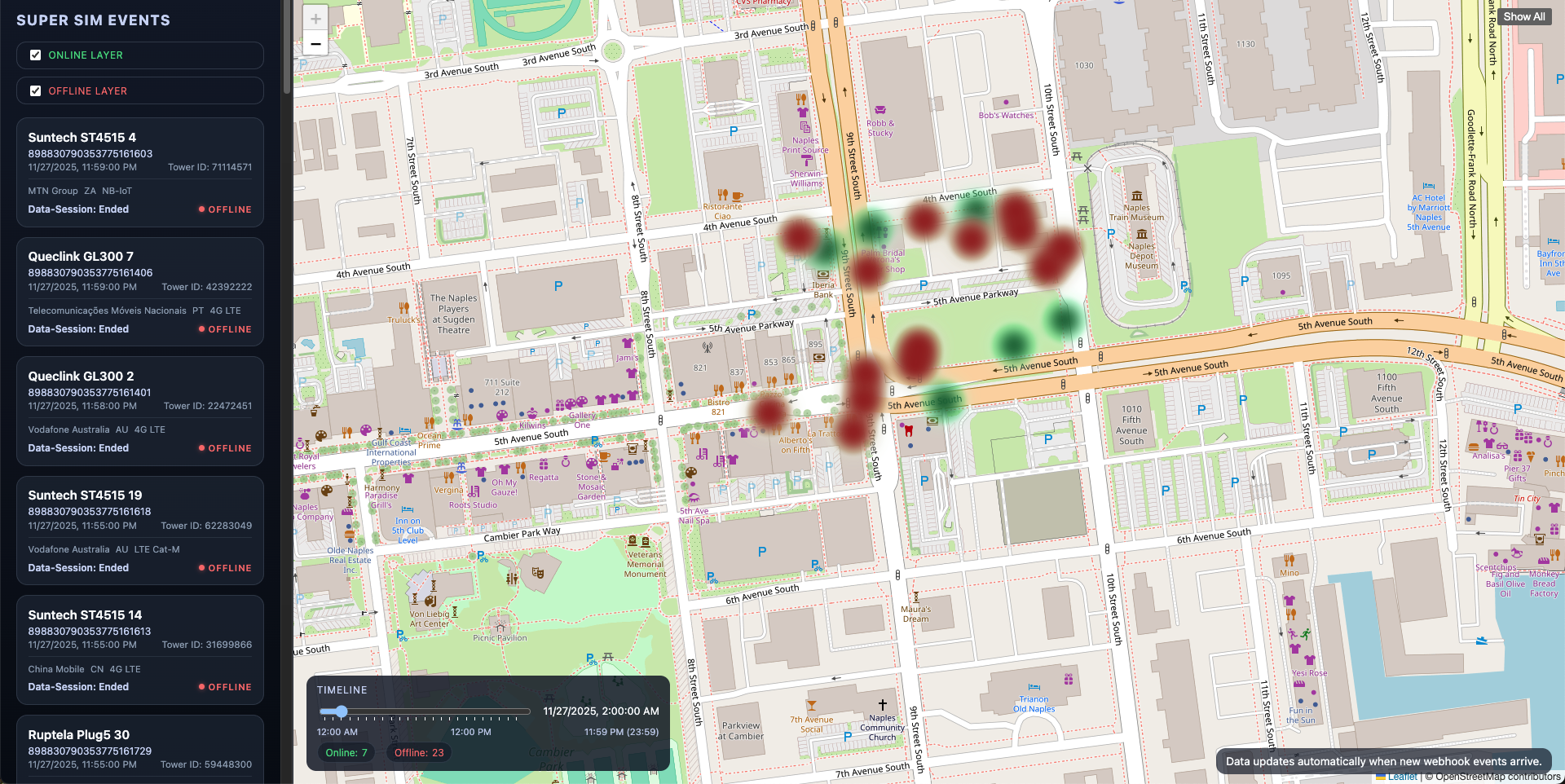

Map after filtering data using the Timeline

Map after filtering data using the Timeline Online Only.

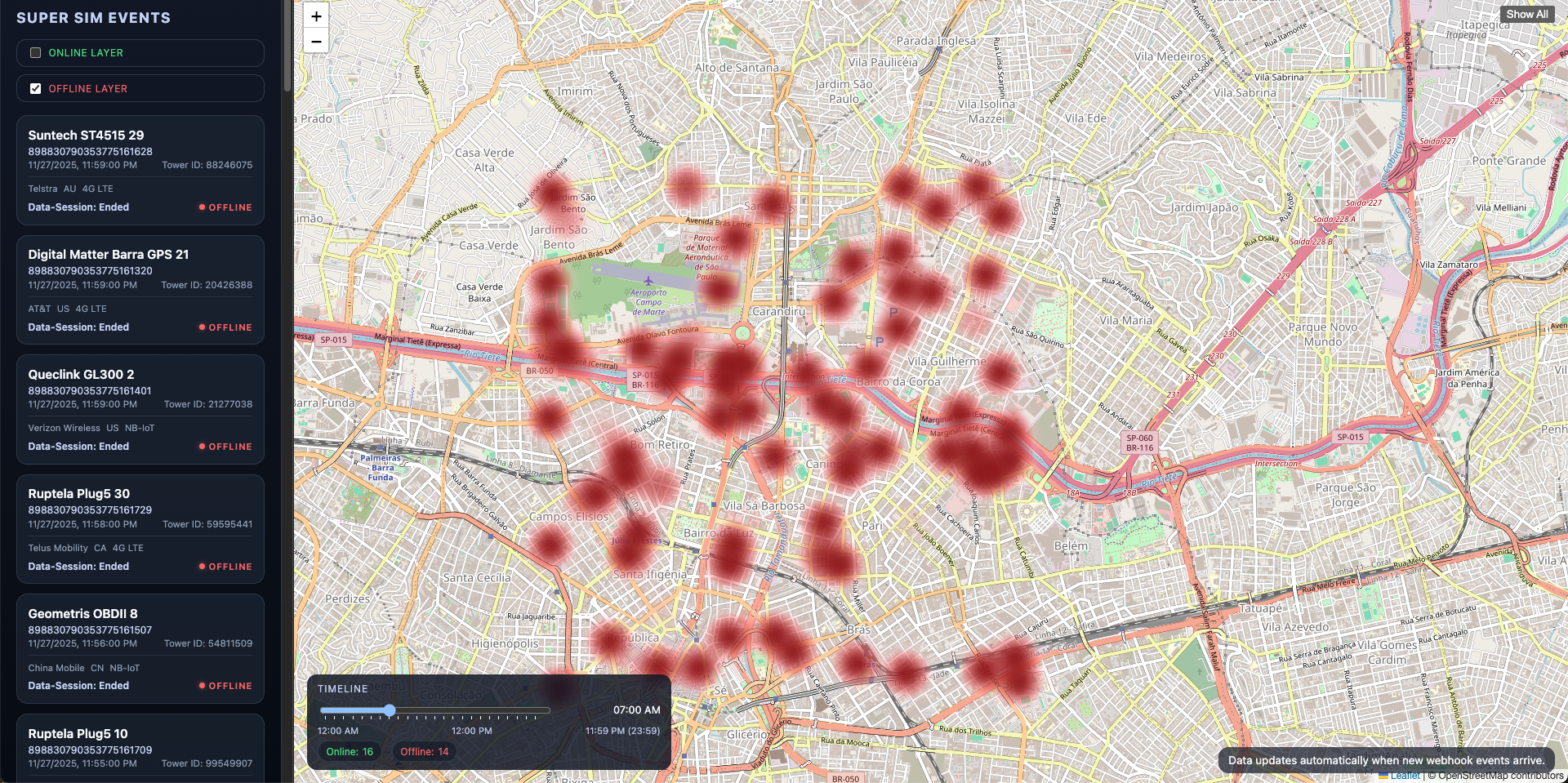

Map after filtering data using the Timeline Offline Only.

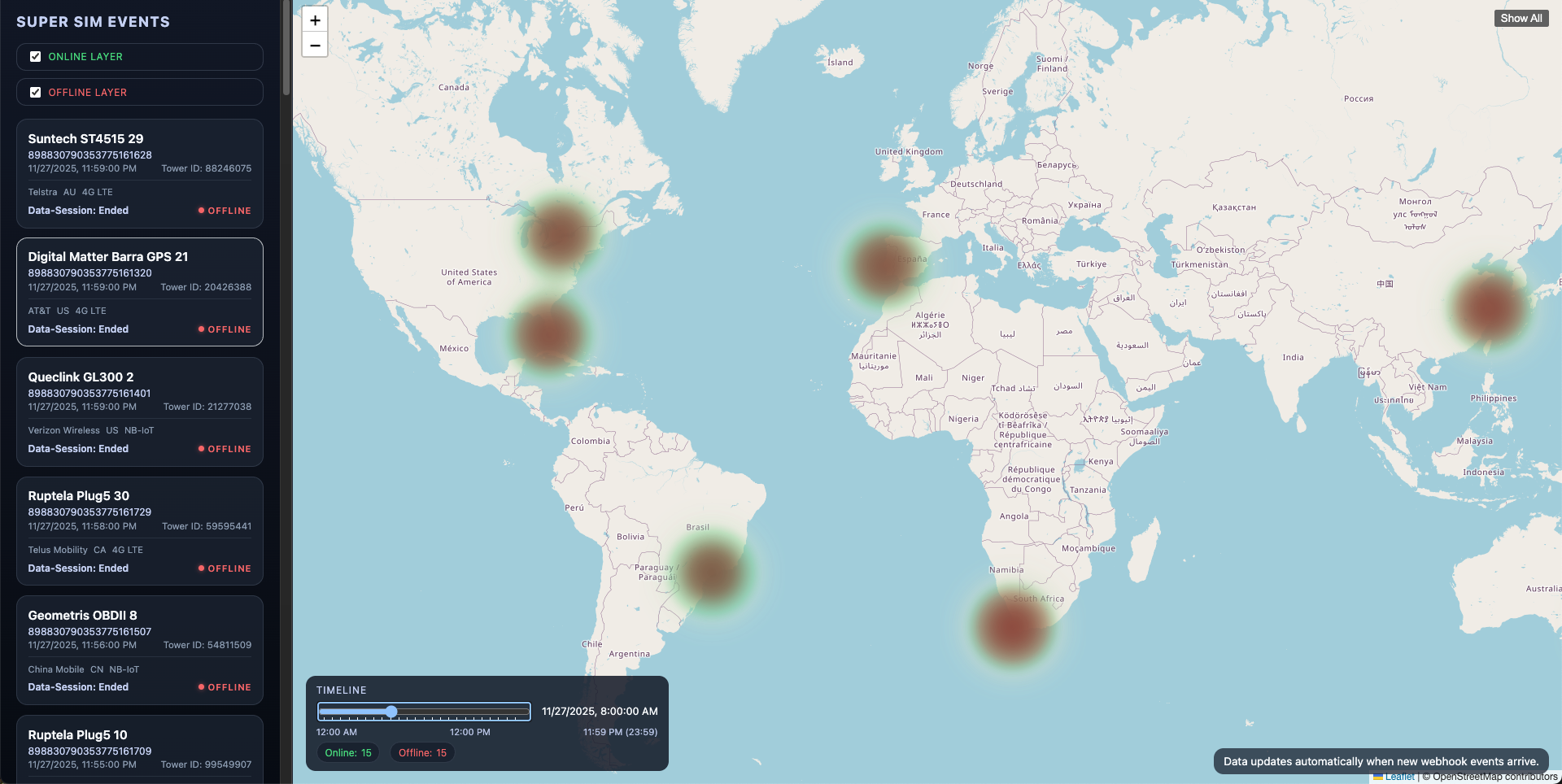

Map after clicking SHOW ALL
